Ready to tackle your window screens? The core process is pretty straightforward: measure the window, get your frame ready, stretch the mesh tight, and lock it in with a flexible spline. With the right gear and a bit of patience, you can get a professional-looking result that keeps the bugs out for good.

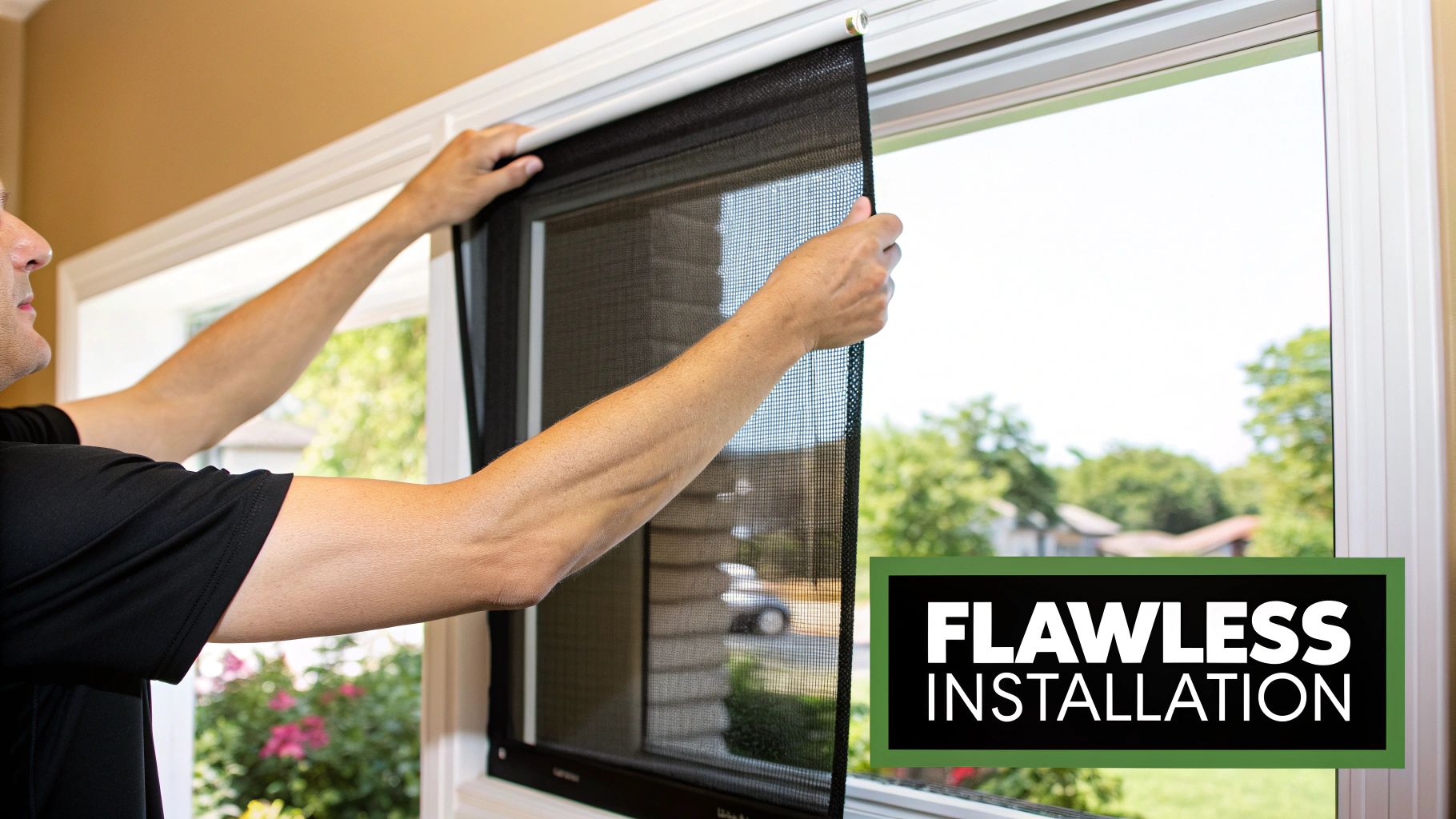

Your Guide to Flawless Window Screen Installation

Whether you're fixing one torn screen or outfitting every window in your house, a great result starts with knowing the basics. We’re skipping the jargon and getting straight to practical advice you can actually use. Think of this as your friendly, step-by-step guide to feeling confident from start to finish.

This walkthrough is designed to help you succeed, whether you're just rescreening an old frame or building a brand-new one from scratch. Our goal is to give you the skills to handle this project yourself, saving you some money and adding a genuinely useful skill to your home improvement toolkit.

What This Guide Covers

We've broken down the entire project into a few key areas to make sure you're set up for success. Here’s what we’ll get into:

• Choosing Your Materials: We'll look at the differences between standard bug screens and the more advanced solar screens so you can decide what’s best for your home and budget.
• Essential Tools: You'll get a complete checklist of everything you'll need, from a basic utility knife to the all-important spline roller.
• Step-by-Step Installation: We’ll walk through detailed instructions for both building a new frame and simply replacing the mesh on an existing one.
• Troubleshooting Common Issues: Got wrinkles, loose mesh, or a frame that's being stubborn? We've got fixes for the most common headaches.

Tackling a window screen installation is one of the most rewarding DIY projects out there. It's practical, budget-friendly, and makes an immediate difference in how your home looks and feels.

It’s not just you—people are definitely investing more in better screens. In fact, the market for plastic-coated window screens was valued at $1.88 billion in 2024 and is expected to grow to $2.52 billion by 2032. That growth is all about the demand for tougher, more energy-efficient materials that are now easy for homeowners to get their hands on. For a deeper dive, you can check out some of the market insights about modern screen materials from Business Research Insights.

Picking the Right Materials and Tools for the Job

Any good DIY project stands on the quality of its foundation. When it comes to building or rescreening a window screen, the materials and tools you choose will make or break the final result. Get this part right, and you'll end up with a professional-looking screen that lasts for years; get it wrong, and you're in for a whole lot of frustration.

Your first big decision is the screen mesh itself. This choice is about more than just keeping bugs out—it’s a chance to make your home more comfortable, especially in a sunny climate like ours.

Bug Screen vs. Solar Screen: What's the Difference?

You've basically got two main contenders here.

Standard fiberglass mesh is the go-to for a reason. It's affordable, flexible, and does a great job of blocking insects. For most people, it's the perfect, budget-friendly solution for general screening needs.

Then you have solar screen, also known as sun screen. This is a heavy-duty, high-performance material that's woven more tightly to block a huge chunk of the sun's UV rays and heat before they hit your glass. The difference is something you can actually feel, and it often leads to real energy savings.

Here in Arizona, upgrading to solar screens can drop your indoor temperatures by as much as 15 degrees. That's a serious impact on your summer cooling bills, not to mention it protects your furniture and floors from fading.

Choosing between them really comes down to your home's needs and your budget. Here’s a quick head-to-head comparison to help you decide which material is best for your windows.

Bug Screen vs Solar Screen Mesh Comparison

Feature	Fiberglass Bug Screen	Solar Screen (Sun Screen)
Primary Function	Insect protection, basic airflow	Heat reduction, UV blocking, insect protection
Material Cost	Lower	Higher
Energy Savings	Minimal	Significant
Visibility	Excellent outward visibility	Slightly reduced, offers daytime privacy
Durability	Good, but can be damaged by pets or hail	Excellent, very resistant to tearing and sun damage

Ultimately, the best screen is the one that solves your specific problems, whether that’s just bugs or the brutal afternoon sun.

If you want to dive deeper, our detailed guide on the best window screen materials breaks down even more options to help you find the perfect fit.

Don't Overlook the Spline

Once you've picked your mesh, you need the right spline to hold it in place. This flexible cord is what locks the screen material into the frame's channel, and using the wrong size is probably the #1 mistake I see people make.

If it's too thin, the screen will be loose and saggy. If it's too thick, you’ll fight to get it in and might even tear the brand-new mesh you just bought.

Spline diameters usually range from .125" to .250". The foolproof way to get it right is to cut a small piece of your old spline and take it with you to the hardware store to match it up. No old spline? No problem. Just buy a couple of the most common sizes and do a quick test on a corner of the frame to see which one fits snugly without a fight.

Your Must-Have Tool Checklist

You don't need a pro-level workshop for this, but a few key tools are non-negotiable if you want a clean, tight finish. Having these ready before you start will make the whole process go a lot smoother.

• Spline Roller: This is your most important tool. One end has a convex (rounded) wheel to push the spline into the channel, and the other has a concave (grooved) wheel to seat it firmly. Don't try to use a screwdriver—it just won't work.
• Utility Knife: A fresh, sharp blade is crucial for trimming the excess mesh without snagging it.
• Tape Measure: Accuracy is everything. Measure twice, cut once!
• Hacksaw (for new frames): If you're building a frame from scratch, you'll need this to cut the aluminum stock. A miter box is a huge help for getting those perfect 45-degree corner cuts.
• Rubber Mallet: Perfect for gently tapping the frame corners together without denting the aluminum.

The demand for better screen materials is growing fast. The larger Windows Accessories market, valued at around $3.5 billion in 2024, is expected to hit over $5 billion by 2033. This boom is fueled by companies constantly innovating to make screens more durable and energy-efficient for homeowners. You can learn more about the trends in the global residential window insect screens industry.

With these materials and tools laid out, you're ready to build a screen that not only fits perfectly but also does exactly what you need it to do.

Building a New Window Screen From Scratch

When a window screen frame is beyond repair—bent, broken, or just plain missing—it's time to build a new one. This can feel like a big leap for a DIYer, but honestly, it’s one of the most rewarding home projects you can tackle. With just a few tools and some careful measuring, you can craft a custom screen that fits like a glove and looks like it was done by a pro.

The absolute key to a successful build is nailing the measurements from the get-go. Precision here saves a world of frustration later.

Mastering Your Measurements and Cuts

First things first, you need to measure the window channel where the screen will actually sit. Grab a reliable tape measure and check the width and height in a couple of spots; window frames aren't always perfectly square. Jot down those numbers immediately.

Now for a bit of simple workshop math. The corner connectors that hold the frame together slide inside the aluminum frame stock. This means you have to subtract their combined width from your measurements to get the right length for your frame pieces.

Here’s the standard formula that works for most frames:

• Frame Height: Your measured window height minus 1.5 inches.
• Frame Width: Your measured window width minus 1.5 inches.

This calculation accounts for two standard 3/4-inch corner connectors on each side. If you're using a different type of frame, you can learn more about how they vary by checking out the types of window screen frames available. Always give the instructions on your frame kit a quick read-through, just in case a non-standard size calls for a different deduction.

With your cutting lengths sorted, it's time to grab a hacksaw. For a really clean, professional-looking result, clamp the frame stock in a miter box set to a 45-degree angle. This guarantees your corners will meet up perfectly flush, giving you a strong, square frame. Cut with slow, steady strokes and let the saw do the work—forcing it can easily bend the aluminum.

Assembling the Frame Correctly

You should now have four neatly cut pieces of frame stock. Lay them out on a large, flat surface just how they'll fit together. This is a good moment to dry-fit everything before you commit.

Take a plastic or metal corner connector and slide it into the hollow end of a long piece. Then, connect it to one of the shorter pieces to form a perfect right angle. Do this for all four corners until you've got a complete, albeit loose, frame.

To lock the corners in tight, use a rubber mallet to gently tap them together. Here's a pro tip I've learned over the years: place a small block of scrap wood over the corner before tapping. It distributes the force and prevents you from denting the new frame.

Finally, check if the frame is square by measuring diagonally from corner to corner. The two measurements need to be identical. If they aren't, just gently push on the longer diagonal until they match up.

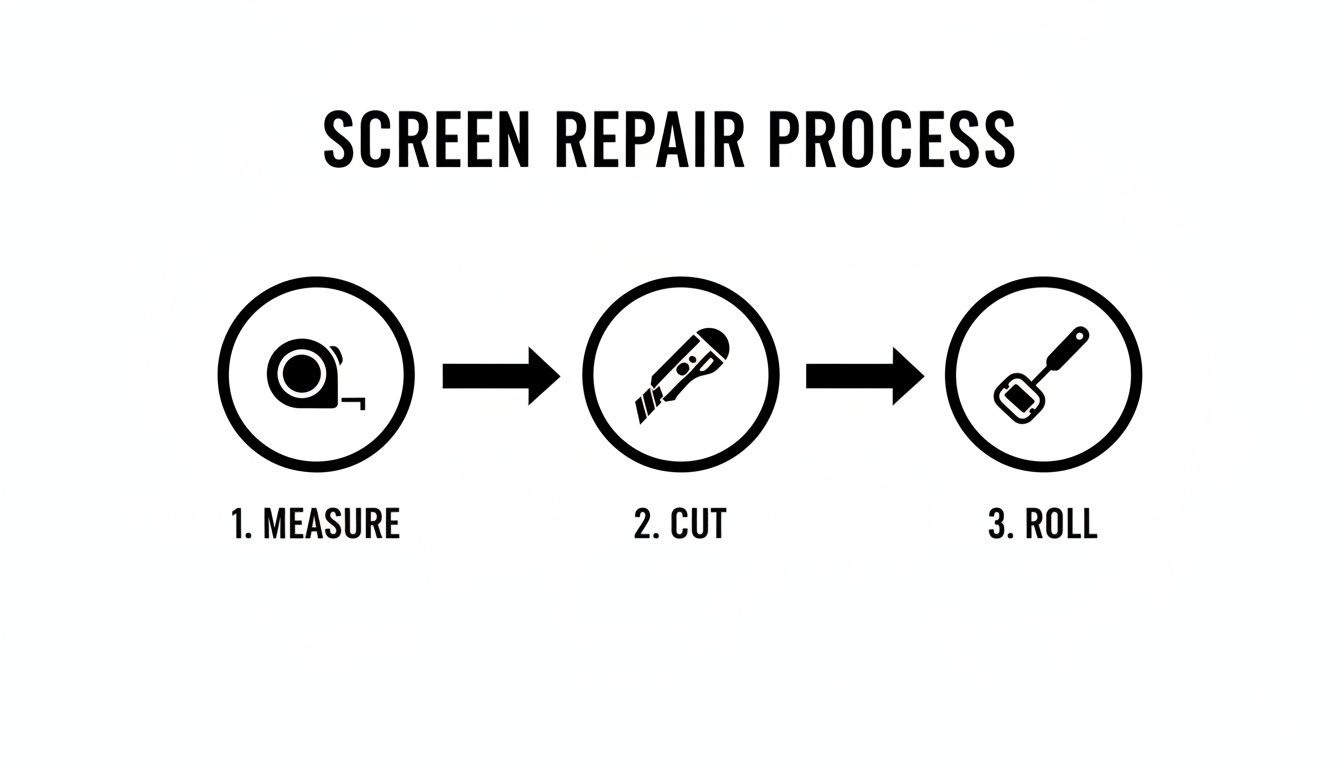

This process really boils down to those three fundamental actions: measure, cut, and roll. Get those right, and you're golden.

Installing the Mesh and Spline

With your frame built and squared up, you're ready for the main event—installing the mesh. This is the step that truly determines how good the final product looks. The secret to a drum-tight, wrinkle-free finish is all about creating the right tension.

Lay your new frame down on your work surface. Unroll the screen mesh and drape it over the frame, making sure you have at least two inches of extra material hanging over all four sides. This overhang is crucial; it gives you something to grip and ensures full coverage.

Now for the technique that makes all the difference. Place a brick or another heavy, flat object right in the middle of the mesh. You'll notice this causes the long sides of the frame to bow inward slightly. This is exactly what you want! As you install the spline, it will pull the frame sides straight again, creating perfect tension across the mesh fabric.

Expert Tip: Don't try to pull the mesh tight with your hands while you're rolling in the spline. Let the process create the tension for you. Over-stretching the material is the #1 cause of wrinkled screens and bowed-in frames.

Start on one of the shorter sides. Using the convex (rounded) wheel of your spline roller, gently push the spline into the channel right on top of the mesh. Once that first side is done, move to the opposite short side and repeat. Then, do the two long sides, always working on opposite sides in sequence.

After the spline is tacked in, go back over the entire perimeter with the concave (grooved) wheel. This time, apply firm, even pressure to push the spline deep into the channel. This is what really locks the mesh securely in place.

Final Touches for a Professional Finish

You're in the home stretch! These last few details are what separate a good-enough job from a great one.

Grab a very sharp utility knife to trim the excess screen mesh. The best way to do this is by holding the knife at a 45-degree angle, with the blade pointing away from the spline. Run the blade smoothly along the outside edge of the spline channel. That angle prevents you from accidentally cutting the spline or the new mesh you just installed.

Last but not least, add the hardware. Pull tabs are a small but mighty addition, making it easy to pop the screen out later. Just slip the base of the tab under the spline on one of the corners before you seat it completely. Tension springs are also essential for a snug fit. These little metal clips are installed on one side of the frame—also held in place by the spline—and they press against the window channel to stop any rattling.

With the hardware on and the excess mesh trimmed, your custom-built screen is officially done. You’ve successfully built and installed a window screen that’s perfectly sized, taut, and ready for action.

How to Rescreen an Existing Frame

Got screen frames that are still in good shape—not bent, cracked, or falling apart—but the mesh itself has seen better days? If it's torn, faded, or full of tiny holes, you're in luck. Rescreening an existing frame is one of the most satisfying and budget-friendly DIY projects you can tackle. It brings your old screens back to life without the hassle of building new ones from scratch.

Essentially, you're just swapping out the old, tired material for a fresh, new screen. This simple fix can dramatically improve your home's appearance and functionality. We've got a whole guide dedicated to this, which you can find right here: https://sparkletechscreenservice.com/how-to-replace-window-screen-mesh/

Removing the Old Spline and Mesh

First things first, you've got to get that old spline out. I'll be honest, this can sometimes be the most frustrating part of the job. After years of baking in the sun, that rubbery spline can become rock-hard and brittle. You'll need something small and sharp, like a tiny flathead screwdriver, an awl, or even a dental pick, to get it started.

Find a corner and carefully work the tip of your tool underneath the spline to pry up an end. Once you can get a grip on it, start pulling it out of the frame’s channel. Be patient. If it’s old, it's going to break into a million little pieces. Just keep working your way around the frame until every last bit is gone.

With the spline out, the old mesh will lift away easily. This kind of simple but necessary home upkeep is a big reason why the Doors & Windows Market is booming. It grew from $213.89 billion in 2025 to $222.34 billion in 2026 and is on track to hit $312.33 billion by 2032. Homeowners are clearly invested in keeping their properties in top shape.

Prepping the Frame for New Screen Material

Now that the old stuff is gone, it's the perfect opportunity to give the frame a good cleaning. The most important area to focus on is the spline channel itself. It's probably packed with years of dirt, dust, and all sorts of gunk. A clean channel is absolutely critical for getting the new spline to sit correctly and hold the screen tight.

Grab a stiff brush—an old toothbrush works great—and scrub out that groove. If the grime is really stubborn, a little soapy water and a rag will do the trick. Just make sure the frame, especially the channel, is completely dry before you move on.

A clean spline channel is non-negotiable. Skipping this step is a common mistake that can prevent the new spline from seating correctly, leading to a loose screen or difficulty during installation. Take the extra five minutes—it's worth it.

Installing New Mesh on an Existing Frame

Putting new mesh on an old frame is almost exactly the same as screening a new one, but there are a couple of things to keep in mind. Lay your clean frame on a flat surface and drape the new screen mesh over it. Make sure you have at least a two-inch overhang on all four sides.

Tension is everything here. To get it right, place a small weight, like a brick or a heavy book, right in the center of the mesh. You'll notice this causes the sides of the frame to bow inward just a little bit. This "concave bow" is the secret weapon against a saggy, wrinkled screen.

Now you're ready to roll in the new spline.

• Start with a short side. Use the convex (rounded) wheel of your spline roller to gently press the spline into the channel, right over the mesh.
• Move to the opposite side. Now, do the same on the opposite short side. You'll feel the mesh pull tight as the frame straightens out. This creates that initial tension.
• Finish with the long sides. Repeat the process on the two remaining long sides.
• Lock it in. Once the spline is in, go back around the entire frame one more time, but this time use the concave (grooved) wheel. Apply firm, steady pressure to push the spline deep into the channel, locking it securely in place.

With the spline fully seated, all that's left is to trim the excess mesh. Grab a sharp utility knife and hold the blade at about a 45-degree angle, pointing away from the spline. Cut smoothly along the outside edge of the channel. You'll be left with a perfectly clean, professional-looking finish. Keeping screens in good repair is a constant job for homeowners and especially for property management companies who need to handle maintenance efficiently and affordably.

Troubleshooting Common Installation Problems

Even the most seasoned DIYer can run into a few hiccups. When you’re rescreening a window, a few predictable issues can pop up, but don’t sweat it—they’re almost always fixable with a bit of know-how. The real mark of a pro finish is knowing how to course-correct when things don’t go perfectly the first time.

One of the most common frustrations is ending up with wrinkles or ripples in your brand-new mesh. This is almost always a sign of uneven tension from when you were rolling in the spline. If you pulled too hard on one side or didn't maintain steady pressure, you'll get those annoying creases.

The fix is simple, though it means you have to backtrack a little. Gently pull the spline back out, let the mesh relax and lay flat over the frame again, and give it another go. This time, really trust the concave bow technique to create the tension for you, rather than trying to pull the fabric tight by hand.

Tackling Loose Mesh and Sagging Screens

What if your screen feels loose or sags right in the middle? This usually points to one of two culprits: not enough tension or the wrong size spline. A good screen should feel taut, almost like a drum. If it’s floppy, it just won’t look right or do its job keeping pests out.

First, take a look at your spline. If it’s too thin for the groove in the frame, it can't grip the mesh securely enough to hold it tight. You can test this by pushing a finger on the mesh right next to the frame; if the spline moves or pops out, you need to go up a size.

A properly sized spline is the secret to a great screen installation. It needs to fit snugly into the channel, requiring firm, steady pressure from your roller to seat it. If it slides in too easily, it's too small. If you're forcing it so hard you feel like you might tear the mesh, it’s too big.

If your spline is the right size, the problem is definitely tension. You’ll have to pull it out and start over, making sure you create that gentle concave bow in the frame before you start rolling. This is the most reliable method for getting even, consistent tension across the entire screen.

When the Frame Just Won’t Fit Back In

Another classic headache is finishing your screen, admiring your work, and then discovering it won't pop back into the window channel. This happens more often than you'd think, usually for one of these reasons.

• Bowed Frame: If you pulled the mesh way too tight during installation, it can actually cause the long sides of the aluminum frame to bow inward, making the screen too narrow in the middle.
• Measurement Mistake: It happens. A simple miscalculation when you were cutting the frame pieces can leave you with a screen that’s just a fraction too big.
• Hardware Issues: Sometimes the tension springs or pull tabs aren't sitting flush and are getting in the way.

For a bowed frame, the only real fix is to re-screen it with less tension. If your measurements were off, you might have to recut the frame. Always double-check that your hardware is seated properly within the frame’s profile and not sticking out.

While tackling a DIY screen project is rewarding, it's just as important to know when to call in a pro. Oddly shaped windows, screens on the second story, or frames that are bent or damaged often require special tools and experience.

If you’re stuck on a tricky installation or just want a perfect result without the hassle, calling a professional is your best bet. At Sparkle Tech Screen Service, we fix these kinds of problems every single day. With our same-week service and fast quotes, we’ll get your screens looking perfect in no time. Give us a call at 800-370-3998 to get it done right.

Questions We Hear All the Time About Window Screens

Even with a step-by-step guide in hand, a few questions always pop up before you start tearing out that old screen. We get it. Here are the answers to some of the most common things people ask us, hopefully clearing things up so you can get started with confidence.

What’s the Hardest Part of Installing a Window Screen?

Honestly, for most folks tackling this for the first time, it’s getting the mesh perfectly tight. It's an art form. You want it taut like a drum, with zero wrinkles, and that takes a specific technique.

The trick is to bow the frame inward slightly before you start rolling the spline. This little bit of tension is what pulls the screen tight when the frame straightens out. You also have to get a feel for the spline roller—too much pressure and you’ll rip the mesh or bend the frame, too little and you’ve got a saggy screen. Getting those corners to lay flat without puckering is another classic beginner's hurdle.

Can I Just Reuse the Old Spline?

I know it’s tempting, but please don't. Our advice is to always use a new spline. The old stuff gets cooked by the sun, especially out here, making it brittle, shrunken, and hard. Trying to force it back into the channel is just asking for a headache.

You’ll likely end up cracking the old spline as you try to install it. Even if it goes in, it won’t hold the new mesh securely. A new roll of spline costs next to nothing and is the single best investment you can make for a tight, professional-looking finish that will actually last.

How Do I Measure for a Brand-New Screen Frame?

If you’re building a whole new screen from scratch, frame and all, you need to measure the window channel itself—the little track the screen sits in. Get a height measurement (top to bottom) and a width measurement (left to right). I always recommend measuring in a couple of spots for both, just in case the window opening isn't perfectly square.

For a typical 5/16" or 7/16" screen frame kit, the rule of thumb is to subtract 1.5 inches from both your height and width. This accounts for the corner pieces and gives you just enough wiggle room for a snug fit. But, and this is important, always read the instructions on the specific kit you buy, as they can vary.

My Two Cents: Measure twice, cut once. It's an old saying for a reason. Taking an extra minute to double-check your numbers will save you the frustration and cost of having to start over.

Is It Cheaper to Rescreen or Just Buy a New One?

Rescreening an existing frame is hands-down the cheaper option, especially if you’re doing the work yourself. Your only real costs are the roll of mesh and a new spline.

Those materials are a tiny fraction of the cost of a brand-new, custom-built screen. Now, the exception is when your frame is bent, cracked, or falling apart. In that case, putting new mesh on a bad frame is just throwing good money after bad. A damaged frame will never sit right, so ponying up for a new one is the smart long-term move.

---

If you're starting to feel like this is more hassle than you bargained for, or you just want a perfect result without the learning curve, Sparkle Tech Screen Service is ready to step in. We offer same-week service, get you a quote fast, and can even do same-day pickup. Give us a call at 800-370-3998 or shoot a text to 623-233-0404. You can also check out our screen services online.
